Metallized Ceramic Components

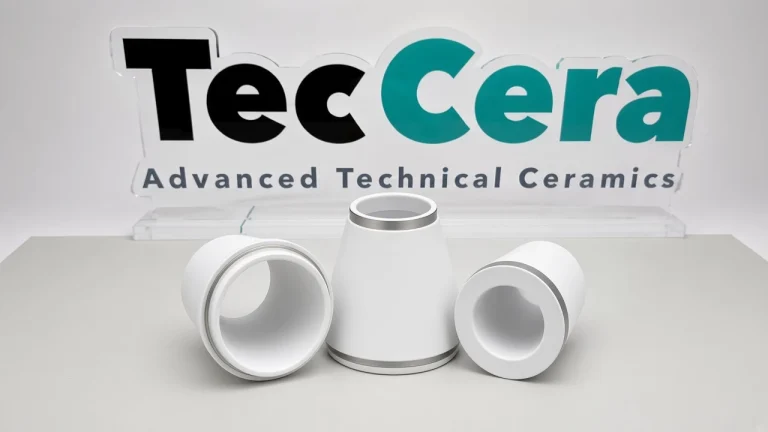

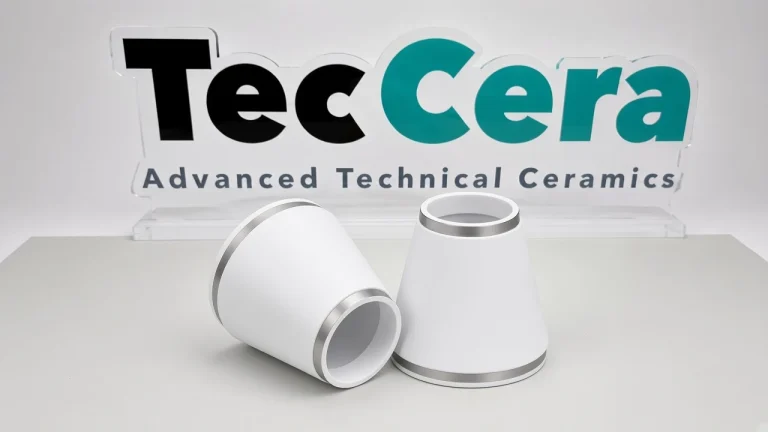

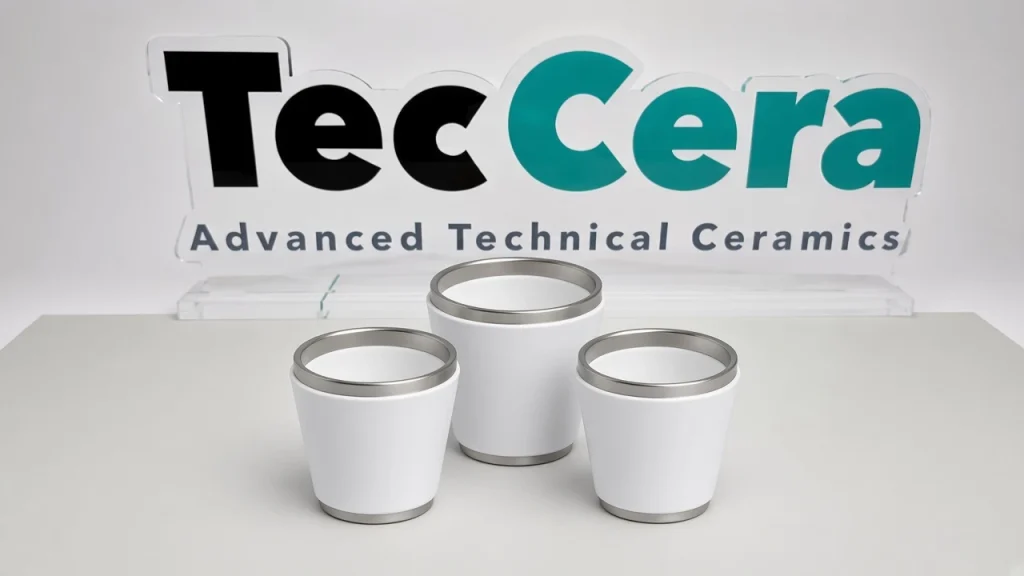

Metallized Alumina Ceramic Cone
TecCera supplies custom metallized alumina ceramic cones with Mo-Mn metallization and optional nickel, silver, copper, or gold plating. These components provide electrical insulation, reliable brazability, and compatibility with hermetic ceramic-to-metal assemblies for vacuum, high-voltage, medical, and electronic applications.
Component Types
Detailed Product Information
Metallized Alumina Ceramic Cone
Product Overview
TecCera supplies precision metallized alumina ceramic cones for ceramic-to-metal brazing and hermetic sealing applications. Available in 95% or 99% alumina, these components combine excellent electrical insulation, mechanical strength, thermal stability, and vacuum compatibility.
The metallization layer can be applied to flat, cylindrical, tapered, and other complex ceramic surfaces. Molybdenum-manganese (Mo-Mn) is commonly used as the base metallization system, followed by optional nickel, silver, copper, or gold plating to improve wettability, oxidation resistance, conductivity, and brazing performance.
Dimensions, tolerances, metallized areas, surface finish, and plating systems can be customized according to customer drawings or samples.
Component Types
- Metallized alumina ceramic cones
- Tapered ceramic insulators
- Conical ceramic feedthrough components
- Metallized vacuum ceramic components
- Ceramic-to-metal brazing components
- Custom-shaped metallized ceramic parts
Technical Specifications
|
No. |
Parameter |
Typical Value / Specification |
Unit |
|
1 |
Alumina Purity |
95% or 99% |
% |
|
2 |
Bulk Density |
≥ 3.63 |
g/cm³ |
|
3 |
Thermal Conductivity at 25°C |
22.45 |
W/m·K |
|
4 |
Coefficient of Thermal Expansion, 20–1000°C |
8.26 |
×10⁻⁶/°C |
|
5 |
Flexural Strength |
≥ 340 |
MPa |
|
6 |
Dielectric Strength |
≥ 8.3 |
kV/mm |
|
7 |
Dielectric Constant at 1 MHz |
9.1 |
— |
|
8 |
Dielectric Loss at 1 MHz |
≤ 0.0004 |
— |
|
9 |
Mo-Mn Metallization Thickness |
15–25 |
μm |
|
10 |
Ni, Cu, Au or Other Plating Thickness |
8–10 |
μm |
Values are typical reference data and may vary depending on alumina grade, component geometry, manufacturing process, and test method.
Material and Surface Options
Base material:
95% or 99% alumina ceramic
Base metallization:
Mo-Mn metallization, typically 15–25 μm
Optional plated layers:
Nickel, silver, copper, gold, or other specified metals
Surface treatments:
Glazing, polishing, grinding, lapping, or custom surface finishing
Dimensions:
Customized according to drawings, samples, or application requirements
Available Joining Configurations
- Alumina ceramic + Mo-Mn metallization + nickel plating
- Alumina ceramic + Mo-Mn metallization + silver plating
- Alumina ceramic + Mo-Mn metallization + gold plating
- Alumina ceramic + silver printing
- Custom metallization and plating combinations
Typical Applications
Metallized alumina ceramic cones and related components can be used in:
- Ceramic electrical feedthroughs
- High-voltage insulating assemblies
- Vacuum interrupters
- Hermetic ceramic-to-metal packages
- Traveling-wave tubes
- X-ray tube components
- Microwave and RF windows
- High-power electrical receptacles
- Vacuum electronic devices
- Power switching components
- Medical and analytical equipment
- Aerospace and industrial electronic assemblies
Custom Manufacturing
Custom metallized ceramic cones are available according to customer drawings or physical samples. Please provide the material grade, dimensions, tolerances, metallized areas, plating requirements, surface finish, application environment, and expected order quantity when requesting a quotation.
